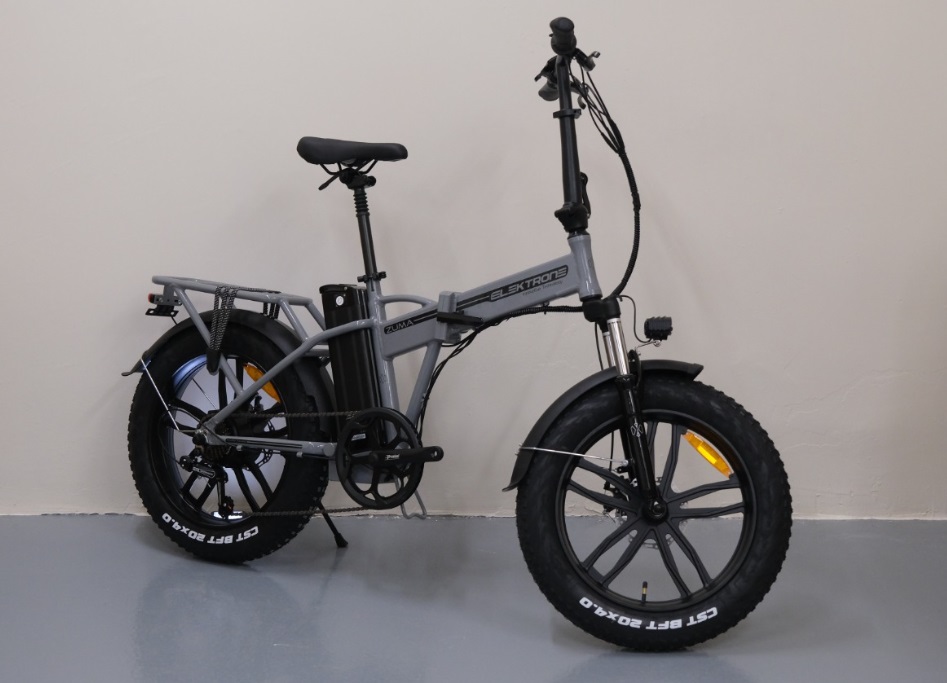

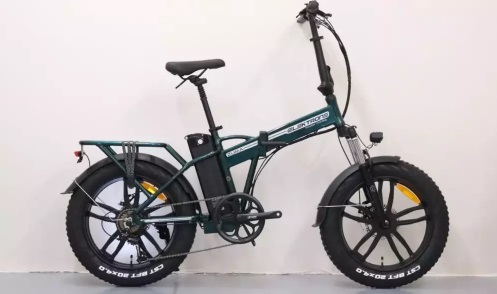

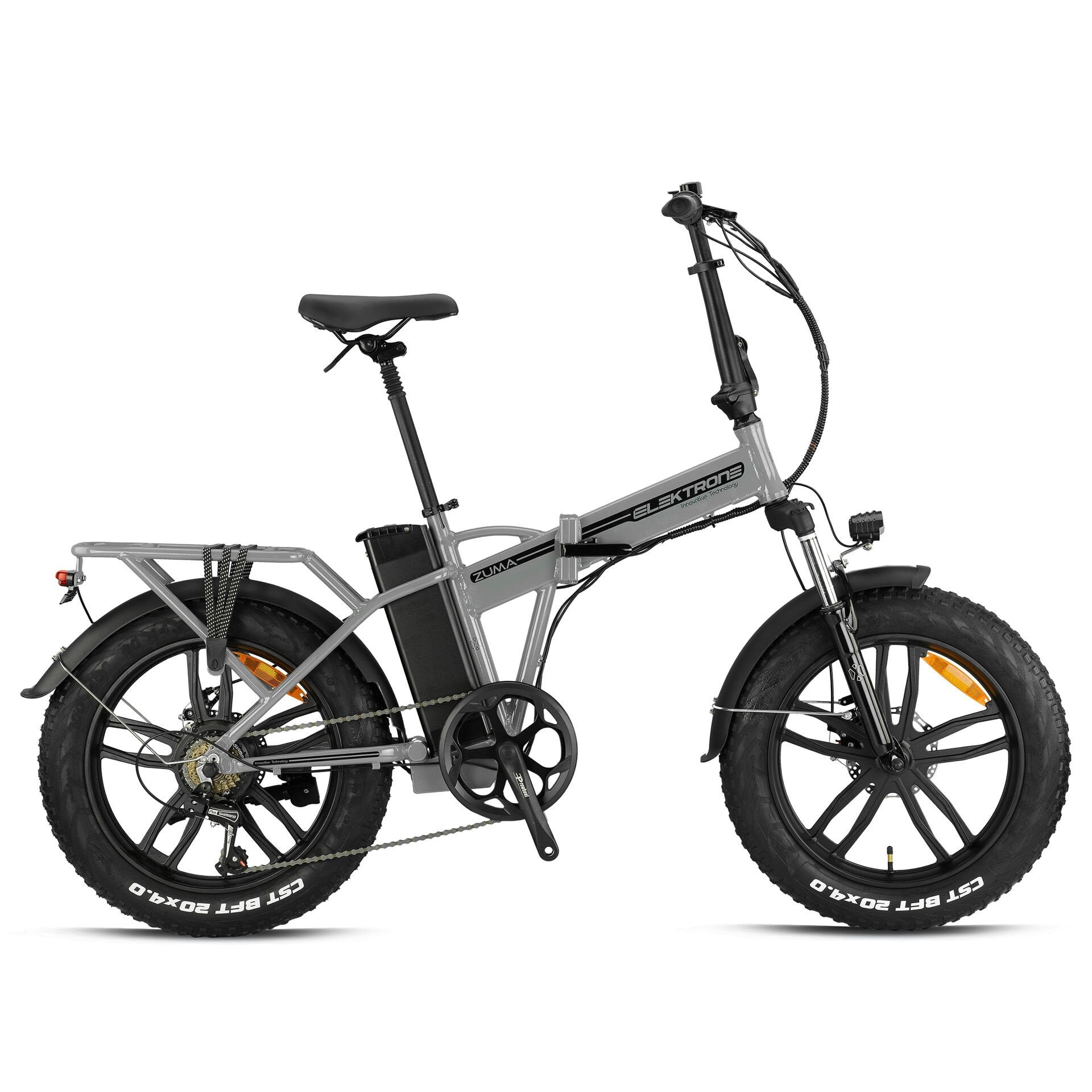

20″ Kadro – Katlanır – Parlak Yeşil (P-0830 gloss) – Gri (YS-716 gloss) – Zuma
Amt. Maşa – MD-N771ST-ML/O – Siyah – Zuma – (YS728 STICKERSYS716) Gri
Kolon Jant – Ön – 20″*4.0″,3/8″*135mm*175mm,with nuts
Kolon Jant – Arka – 20″*4.0″,36V*350W,cable in the left, speed limit 25KM/H,with 250W logo – Zuma
Furş Takımı – ?28.6*44*30,H=22mm,1-1/8″ – Zuma
Gidon – ?22.2mm*1.4T*560mm – MD-T08 – Zuma
Gidon Boğazı – MD-X01 – Zuma
Elcik – Sol – L=22.2*130MM,with F17 plug – Zuma
Elcik – Sağ – R=22.2*92MM,with F17 plug – Zuma
Orta Yatak – BC1.37″*24T,170MM – KL-08AL – Zuma
Aynakol – 1/2*3/32″*52T*170MM -PRO-552PP-3 – Zuma
Zincir – 1/2*3/32″*124L,7-speed – Z7 GY/BR – Zuma
Pedal – 9/16″, with L/R sticker -FP-806B – Zuma
İç Lastik – 20″*4.0″,A/V,H=48MM – Zuma
Dış Lastik – 20″*4.0″,with CST logo – C1752 – Zuma
Jant Kolonu – 20*70mm – A/V, Nylon – Zuma
Ön Fren – disc brake,M6*16L,with 160mm disc plate
Arka Fren – disc brake,M6*18L,with 160mm disc plate
Fren Kablosu – 7*6,F:1100*1450,R:1820*230 – Zuma
Vites Kolu – Sağ – 7-Vites,2050MM – ASLRV2007RA – Zuma
Arka Attırıcı – 6/7 Vites – ARDTY21BGSDL – Zuma
Vites Kablosu – 2150mm – Zuma
Vites Teli – 2600mm – Zuma
Sele – w/Clamp – VD608D – Siyah – Zuma
Sele Borusu – ?27.2mm*400mm, without clamp – MD-SPS1- Zuma
Sele Kelepçesi – ?31.8mm,with Q/R – JH-01 – Zuma
Ön – Arka Çamurluk – 20″,108mm*25mm,radius=310mm L:550mm – L:880mm – Zuma
Ön Braket – ?4.3MM,?6.5MM,217MM – Zuma, Çamurluk ve Klips – Steel, UCP – Zuma
Arka Braket – ?4.3MM,?6.5MM,294MM – Zuma,Çamurluk Klips – Steel, UCP – Zuma
Parkayağı – 245mm,M6*15mm,40mm – SD-10 – Zuma
Ön Jant Reflektörü – yellow,140 pitch-row – Zuma
Arka Jant Reflektörü – yellow,140 pitch-row – Zuma
Zil – ?22.2 clamp – 11A-05 – Zuma
Ön Far – 36V,black,7015 plug – D-022 – Zuma
Arka Far – pitch-row,50-80mm,36V,red/black – WD-09 – Zuma
Klip – 25*15mm rubber cover – Zuma
Arka Taşıyıcı Kemeri – L=450MM – Zuma
Plastik kelepçe – 4x150mm – COASTER/ARMOUR/DISCOVERY
Batarya – 36V*10.4AH – SF-2 – Zuma
Batarya Aksesuarı – Kablosu 250mm
Batarya Aksesuarı – SF-2 – Zuma / Batarya Kablosu – 250mm – Zuma
Controller – 20″, 36V*350W, speed limit 25km/h – Zuma
Ekran – 36V,0-5 level,with throttle, display and throttle separately – Zuma
Hız Sensörü – left,double hall, 300MM – Zuma
Şarj – 36V,2A,DC2.1 – Zuma
Elektrik Kablosu – 1T3 -Zuma
Kablo Sargısı – 8mm,0.5m,black – Zuma
Sol Fren Kolu – Elektrik kesme swich – Zuma
Sağ Fren Kolu – Elektrik kesme swich – Zuma
Bisiklet Kolisi – 1730x260x940 E-bike (Loop) ZUMA
Şerit – Beyaz 12*0.60mm 3000mt
Strafor 48/10 – 28/10
Plastik Kelepçe – 4.8x370mm Kadro İçin
Arka Attırıcı Koruma Plastiği – KRON
KOLİ KAPAMA TELİ – 38x35mm
Garanti Belgesi – Kron E-Bike
Elcik koruma kılıfı – Balonlu Şilte Torba 18x30cm
Ruble – Shimano AMFTZ5007428 – 7 SPEED – 14-28T
